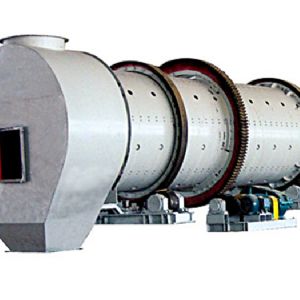

  • HZL1405-HZL3012 Ratary Drum Granulator
    1. HZL1405-HZL3012 Ratary Drum Granulator

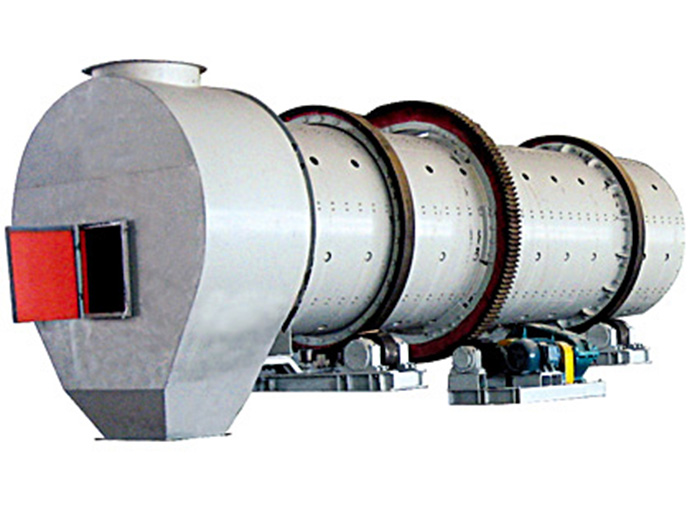

HZL1405-HZL3012 Ratary Drum Granulator

■ Use◎ For cold and hot granulation, as well as large-scale production of high, medium and l

信息详情


■ Use

◎ For cold and hot granulation, as well as large-scale production of high, medium and low concentration compound fertilizer.

■ Equipment introduction

◎ The barrel of the machine is made of special rubber lining and stainless steel pressure plate to realize automatic removal of mites and tumors. It has the characteristics of high ball strength, good appearance quality, corrosion resistance, wear resistance, low energy consumption, long service life and convenient operation and maintenance.


■ Main Technical parameters:

Type

HZL1405

HZL1606

HZL1806

HZL2007

HZL2208

HZL2408

HZL2610

HZL2811

HZL3012

Size(cylinder Dia.×cylinder Length)  (m)

Φ1.4×5

Φ1.6×6

Φ1.8×6

Φ2.0×7

Φ2.2×8

Φ2.4×8

Φ2.6×10

Φ2.8×11

Φ3.0×12

Capacity (t/h)

3-4

5-8

8-12

12-15

15-18

20-26

26-30

30-35

40-50

Rotary Speed (r/min)

13.2

11.9

11.3

10.2

9.7

9.6

9.2

8.9

8.7

Slope (degree)

2-2.5

Granulation Percentage(%)

60-80

Motor

Type

Y160M-4

Y160L-6

Y200L1-6

Y200L2-6

Y250M-6

Y280M-6

Y315S-6

Y315M-6

Y315L2-6

Power(kw)

11

11

18.5

22

37

55

75

90

132

外形尺寸 (长L.×宽W.×高H.) (mm)

5320

×2820
×2300

7200
×2315
×2520

7350
×2900
×3160

8730
×3040
×3515

9800
×3280
×3610

9800

×3300
×3780

12000
×3350
×3920

12850

×3560
×4800

14500
×4900
×5150


HZL1405-HZL3012 Ratary Drum Granulator
