  • Double-Screw Extrusion Granulator
    1. Double-Screw Extrusion GranulatorDouble-Screw Extrusion Granulator

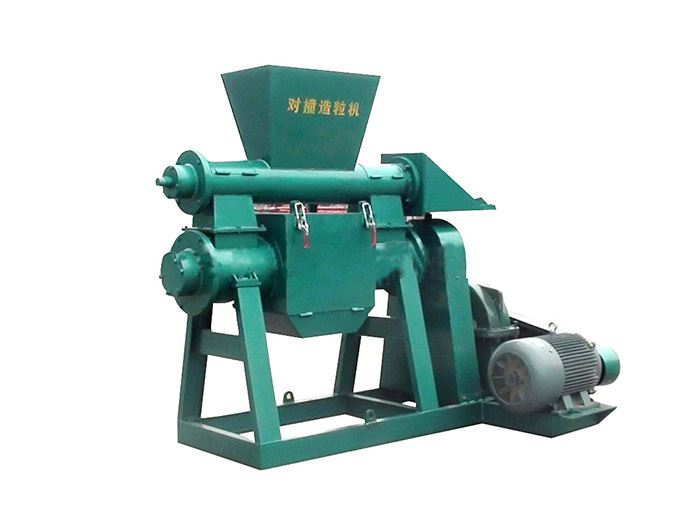

Double-Screw Extrusion Granulator

■ USE◎  Used for production of granular organic fertilizer, organic -inorganic compound fer

信息详情

■ USE

◎  Used for production of granular organic fertilizer, organic -inorganic compound fertilizer, biological organic fertilizer after the fermentation of organic materials, such as poultry droppings, municipal sludge, living garbage and sugar factory sludge, papermaking sludge, lees, bean dregs, straw, turf and so on.

■  Profile of Equipment

◎  This equipment is divided into feeding material area and granulation area, it use double spiral flow granulation technology in granulation area, the organic material in the granulation zone through rub up, shear and heating process, its plasticity will improve, granulation percentage and the applicable scope will increase, and also the energy consumption is far lower than the traditional extrusion granulator.

■  Equipment characteristics

◎  raw materials applicability is wide, high granulation percentage , large capacity, low energy consumption, less wearing parts, maintenance is convenient


■ Main Technical parameters:

Type

HDZJ1

HDZJ2

HDZJ3

Capacity  (t/h)

2

3

4

Feeding Granularity (mm)

<1

<1

<1

Discharging Granularity (mm)

3-5可调

3-5可调

3-5可调

Granulation percentage (%)

95

95

95

Feeding moisture  (%)

25-35

25-35

25-35

Motor power (kw)

30

48

60

Dimensions   (L.×W.×H.) (mm)

1870
×840
×1550

2050
×880
×1750

2450
×920
×1950


Double-Screw Extrusion Granulator
Double-Screw Extrusion Granulator 2018-6-5 本文被阅读 1395 次
