Your present position:Home>Granulation Equipments
  • HCL22-HCL60 Disc Granulator
    1. HCL22-HCL60 Disc Granulator

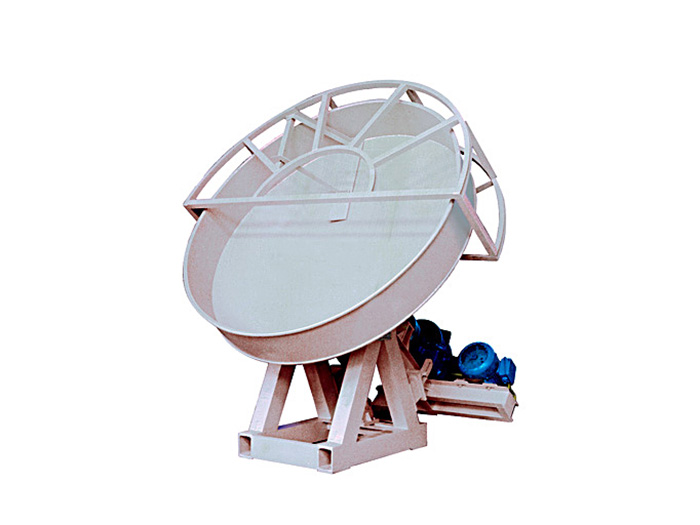

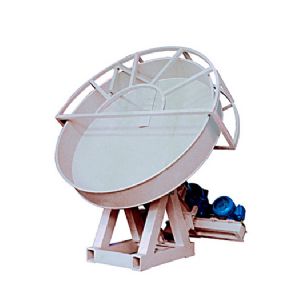

HCL22-HCL60 Disc Granulator

■ USE◎  It is mainly used for small sized production of medium or low consistency of compound f

信息详情


■ USE

◎  It is mainly used for small sized production of medium or low consistency of compound fertilizer and organic fertilizer as well as organic-inorganic fertilizer.

■ Profile of Equipment

◎  The granulation slope of this equipment can be adjusted within 40-50°. It has the charcteristics of high granulation rate, even granules, audio-visual operation, convenient maintenance, etc..


■ Main Technical parameters:

Type

HCL22

HCL25

HCL28

HCL32

HCL40

HCL45

HCL60

Dia. of granulation disc (mm)

Φ2200

Φ2500

Φ2800

Φ3200

Φ4000

Φ4500

Φ6000

Capacity (t/h)

1-1.5

1.5-2

2-3

3-4

4-5

5-6

6-10

Rotary Speed of main axle(r/min)

18

16.2

14.2

13.5

12.3

10

8.9

Slope of granulation disc (degree)

40-50

45

Granulation Percentage(%)

≥85

≥80

Motor

Type

Y132M-6

Y160M-6

Y160M-6

Y160L-6

Y180L-6

Y180L-4

Y280S-4

Power(kw)

5.5

7.5

7.5

11

15

22

75

Dimensions (L.×W.×H.) (mm)

2530
×2100
×2800

2630
×2600
×2800

2850
×3020
×3110

3600
×3030
×3310

4500
×3300
×4000

5100
×3700
×4400

6400
×500
×6000

HCL22-HCL60 Disc Granulator
