  • HGZ1210-HGZ3830 Rotary Dryer
    1. HGZ1210-HGZ3830 Rotary DryerHGZ1210-HGZ3830 Rotary Dryer

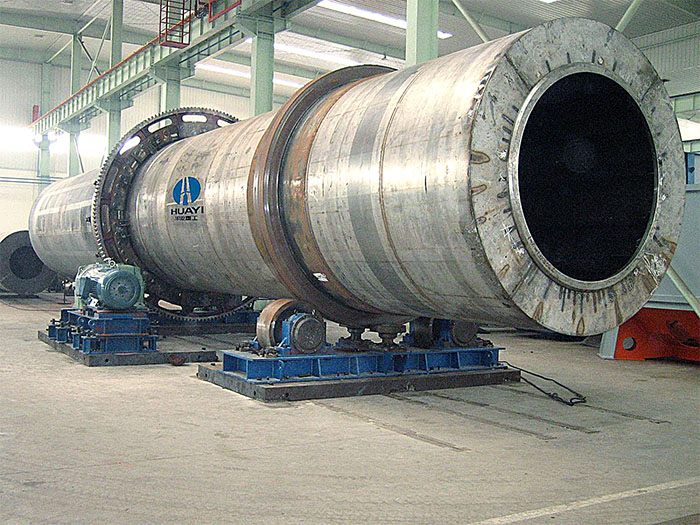

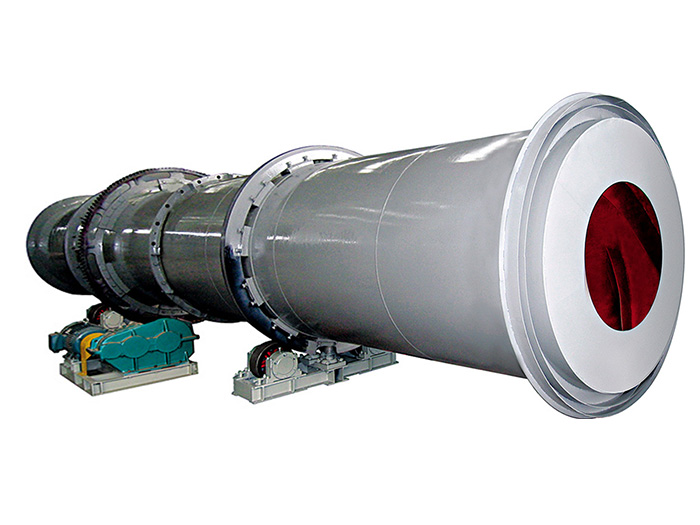

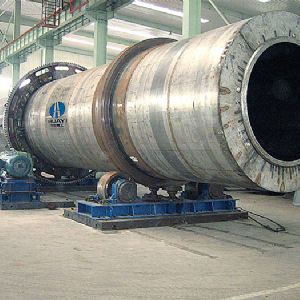

HGZ1210-HGZ3830 Rotary Dryer

■ USE◎  It is used for drying treatment of various compound fertilizers and pre-drying treatmen

信息详情

■ USE

◎  It is used for drying treatment of various compound fertilizers and pre-drying treatment of organic fertilizer.

■ Profile of Equipment

◎  Accroding to characters of materials, the cylinder of this equipment is inside fitted with multiangle lift paddles that are distributed reasonably, which can achieve even materials lifting, larger heatstroke ares and good drying effects. This equipment has many charactenstics such as reasonable structure, strong adaptability, stable run, low power consumption etc..


■ Main Technical parameters:

Type

HGZ1210

HGZ1514

HGZ1818

HGZ2020

HGZ2222

HGZ2424

HGZ2626

HGZ2828

HGZ3030

HGZ3530

HGZ3830

Size(cylinder Dia.×cylinder Length)  (m)

Φ1.2×10

Φ1.5×14

Φ1.8×18

Φ2.0×20

Φ2.2×22

Φ2.4×24

Φ2.6×26

Φ2.8×28

Φ3.0×30

Φ3.5×30

Φ3.8×30

Capacity (t/h)

2-3

3-5

5-6

8-10

10-14

14-16

16-20

20-24

24-30

30-35

35-40

Rotary Speed (r/min)

5.4

4.7

4.15

3.75

4

3.6

3.5

3.2

3

3.4

3.4

Slope (degree)

1.5-2.5

Air-in temperature (℃)

80-350

Dischanging moisture (%)

1-4

Motor

Type

Y160M-6

Y180L-6

Y200L2-6

Y225M-6

Y280S-6

Y280M-6

Y315S-6

Y315M-6

Y355M-6

Y335M2-6

Y355L1-6

Power(kw)

7.5

15

22

30

45

55

75

90

160

185

220

Dimensions (L.×W.×H.) (mm)

12500
×2000
×2400

15440
×2375
×3110

19600
×3200
×3400

21750
×2820
×3445

24300
×3380
×4410

26000
×3430
×4200

27500
×3400
×4400

30800
×4200
×4550

33000
×4250
×5000

33000
×4800
×5900

34000
×5200
×6640

HGZ1210-HGZ3830 Rotary Dryer
