  • HTM1204-HTM2208 Rotary Coater
    1. HTM1204-HTM2208 Rotary CoaterHTM1204-HTM2208 Rotary Coater

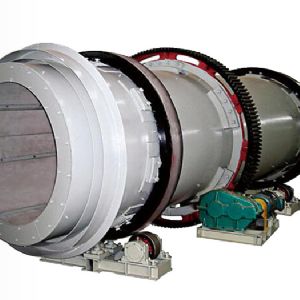

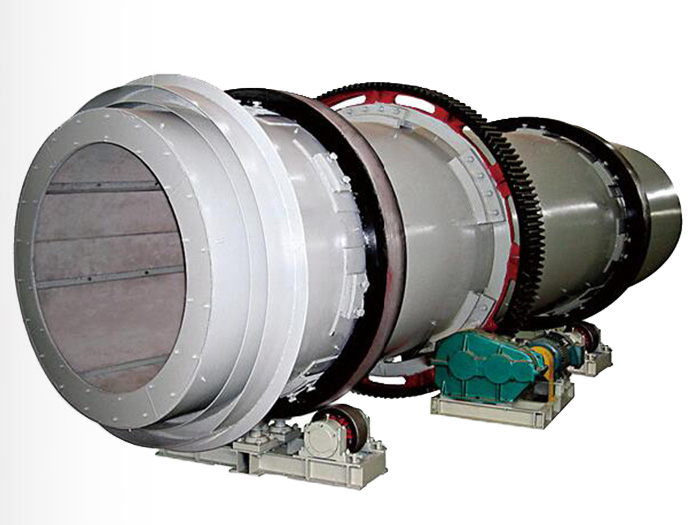

HTM1204-HTM2208 Rotary Coater

■ USE◎  It is used for powdering or liquid coating of granular fertilizer solid.■ Profile of Eq

信息详情

■ USE

◎  It is used for powdering or liquid coating of granular fertilizer solid.

■ Profile of Equipment

◎  This equipment has many advantages such as reasonable struture, stable run, dirt-free, pollution-free strong adaptability etc.. It can make one layer of protection membrane form on the surface of compound fertilizer granule to isolate granule surface from outer air, thereby effectively preventing compound fertilizer from forming block, and at the same time increasing surface brightness of granules, And some trace elements can also be added into coating materials to increase fertilizer efficiency.


■ Main Technical parameters:

Type

HTM1204

HTM1405

HTM1606

HTM1806

HTM2007

HTM2208

Size(cylinder Dia.×cylinder Length) (mm)

Φ1.2×4

Φ1.4×5

Φ1.6×6

Φ1.8×6

Φ2.0×7

Φ2.2×8

Capacity (t/h)

5-6

8-10

12-16

16-22

25-30

30-35

Rotary Speed (r/min)

10.4

10

9.5

9.1

8.6

8.2

Slope(degree)

1.5-2.5

Motor

Type

Y132S-4

Y160M-6

Y160L-6

Y220L1-6

Y200L2-6

Y225M-6

Power(kw)

5.5

7.5

11

18.5

22

30

Dimensions (L.×W.×H.) (mm)

4000
×1960
×2130

5000
×1930
×2775

6000
×2315
×2520

6000
×2900
×3160

7000
×3050
×3520

8000
×3240
×3715


HTM1204-HTM2208 Rotary Coater
HTM1204-HTM2208 Rotary Coater 2018-6-5 本文被阅读 1059 次
