  • HWS50-HWS100 Horizontal Pulverizer
    1. HWS50-HWS100 Horizontal Pulverizer

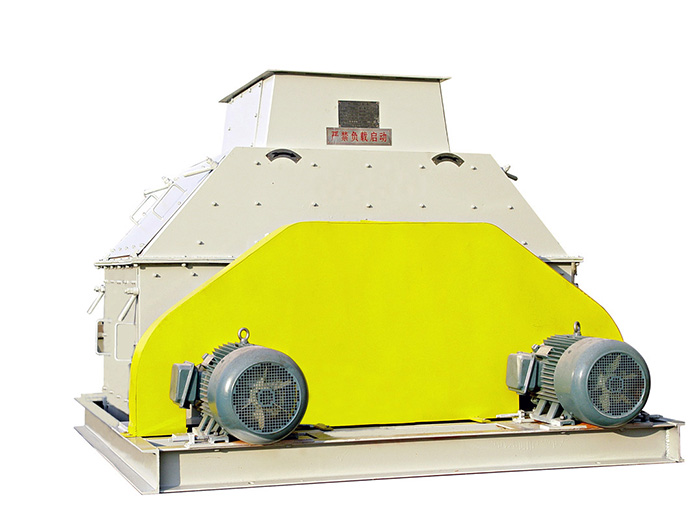

HWS50-HWS100 Horizontal Pulverizer

■ USE◎  It is used in phosphate compound fertilizer industry for pulverizing perparative materi

信息详情


■ USE

◎  It is used in phosphate compound fertilizer industry for pulverizing perparative materials and back-materials.

■  Profile of Equipment

◎  This equipment is designed into mutual-roll type, Reosonable arrangement of feeding inlet can ensure adequate pulverizing time of materials, thereby being sure of full pulverizing of materials, fine and even granularity, and convenient for granulating, It is lined with stainless steel. Damping pedestal can be fitted on equipment according to need, which can reduce impact on foundation and manufacture cost of foundation.


■ Main Technical parameters:

Type

HWS50

HWS60

HWS70

HWS80

HWS100

Center Distance  (mm)

500

600

700

800

1000

Capacity (t/h)

5-6

6-10

12-16

16-20

20-25

Feeding Granulatity  (mm)

<100

<100

<120

<120

<120

Discharging Granularity

≤1mm占70%-90%

Motor

Type

Y132M-4

Y160L-4

Y160L-4

Y180L-4

Y225M-4

Power (kw)

7.5×2

11×2

15×2

22×2

55×2

Dimensions (L.×W.×H.) (mm)

1754
×1292

×1115

1850
×1650
×1330

2150
×2020
×1600

2170
×2320
×1725

2620
×2900
×2150

HWS50-HWS100 Horizontal Pulverizer
