  • HGS10-HGS22 Rotary Grading Sieve
    1. HGS10-HGS22 Rotary Grading SieveHGS10-HGS22 Rotary Grading Sieve

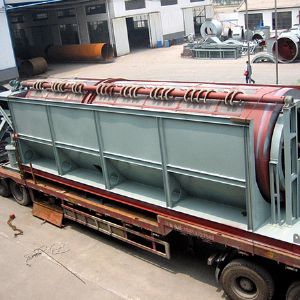

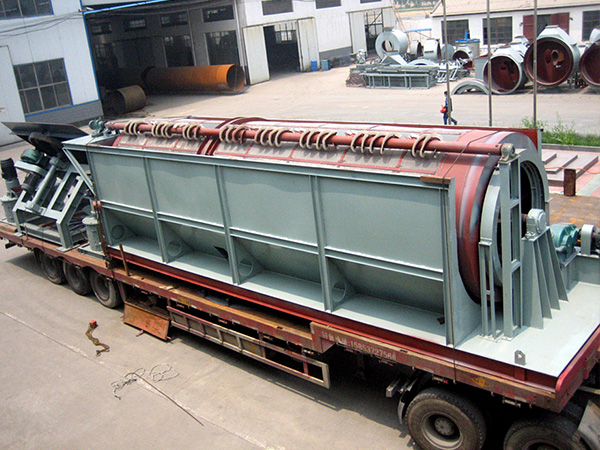

HGS10-HGS22 Rotary Grading Sieve

■ USE◎  It is used for grading and sieving of compound fertilizer.■  Profile of Equipment◎

信息详情

■ USE

◎  It is used for grading and sieving of compound fertilizer.

■  Profile of Equipment

◎  This equipment is fitted with different meshes of sieve meshworks from feeding side to discharging side, which can achieve grading and sieving of compound fertilizer, This equipment has the characteristics of large capacity, good sieving effects, convenient operation etc.. This equipment It can be fitted with the following two types of sieve cylinders: round type and conical type.


■ Main Technical parameters:

Type

HGS10

HGS12

HGS15

HGS18

HGS20

HGS22

HGS24

Size(cylinder Dia.×cylinder Length)  (m)

Φ1.0×4

Φ1.2×5

Φ1.5×6

Φ1.8×6

Φ2.0×6

Φ2.2×8

Φ2.4×8

Rotary speed (r/min)

15.4

15.4

16

14.5

15

10

10

Capacity  (t/h)

3-5

5-8

8-12

12-15

15-20

20-28

30-45

Power of motor(kw)

3

4

7.5

11

15

15

22

Dimension (L.×W.×H.) (mm)

6200
×1780
×2100

6500
×1950
×2200

7705
×2280
×1050

7900
×2580
×4160

8200
×3200
×4800

10375
×2600
×2800

10375
×2800
×3200

HGS10-HGS22 Rotary Grading Sieve
HGS10-HGS22 Rotary Grading Sieve 2018-6-5 本文被阅读 1091 次
