Your present position:Home>Nitrogen-adding Equipments
  • HLR1-HLR3Urea Molyrn Device
    1. HLR1-HLR3Urea Molyrn DeviceHLR1-HLR3Urea Molyrn Device

HLR1-HLR3Urea Molyrn Device

■ USE◎  It is used for quickly melting urea and batching it in urine-base compound fertilizer a

信息详情

■ USE

◎  It is used for quickly melting urea and batching it in urine-base compound fertilizer and high-tower granulation production line.

■  Profile of Equipment

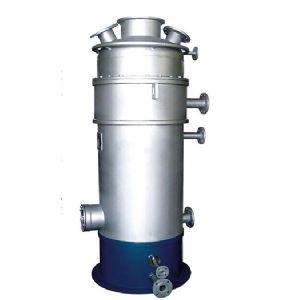

◎  This series of molten apparatuses can quickly turn granular urea into molten urea liquid

without needing adding water and mixing.And the molten process is very short,which can fundamentally reduce the formation of biuret and the molten urea liquid is batched into

granulating systen through a specific equipment to achieve urea liquid spraying granulating. Only give heat to granulating system withort adding moisture to granulating system,which can greatly reduce downstream drying degree ahd thereby increase the capacity of whole production Iine.AII core parts for the host and accessory equipment of this device are manufactured from stainless steel.Therefore.this device has many advantages such as corrosion-reslstance.taking up smaller floor and long service life etc..


■ Main Technical parameters:


Type

HLR1

HLR2

HLR3

Capacity (t/h)

2.5-3

4-6

8-10

Steam Consumption (kg/h)

500

1100

2100

Steam Pressure  (MPa)

0.6

Dimension (L.×W.×H.) (mm)

1070
×910
×2230

1480
×1590
×3220

1400
×1510
×3400


HLR1-HLR3Urea Molyrn Device
HLR1-HLR3Urea Molyrn Device 2018-6-5 本文被阅读 1001 次
