Your present position:Home>Fermentation Equipments
  • Bacteria Culture Tank
    1. Bacteria Culture TankBacteria Culture TankBacteria Culture TankBacteria Culture Tank

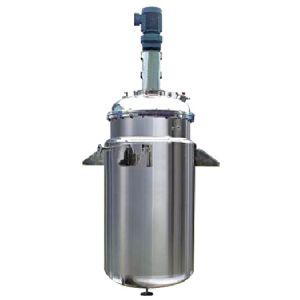

Bacteria Culture Tank

■ USE◎  Used for fermentation culture for various bacteria in biological engineering, dairy

信息详情


■ USE

◎  Used for fermentation culture for various bacteria in biological engineering, dairy products, beverage, pharmaceutical and other industries.

■ Profile of Equipment

◎  Tank is equipped with interlayer and insulation layer, can heat, cool and heat preserve, tank and filling head up and down all use spinning R Angle processing, after tank inner wall be processed by mirror polishing, it has no health dead Angle, and fully enclosed design can ensure that the material mix and ferment always under a state of pollution-free. Equipment is equipped with mixing device, air breathing hole, cleaning device, manhole etc...which is convenient.to maintain.


■ 主要规格和技术参数:

Normal volume

300L

400L

500L

600L

800L

1000L

1500L

2000L

3000L

Cylinder Dia. (mm)

Φ800

Φ800

Φ900

Φ1000

Φ1000

Φ1000

Φ1200

Φ1300

Φ1600

 Cylinder height (mm)

600

800

800

800

1000

1220

1220

1500

1500

Motor power (kw)

0.55

0.55

0.75

0.75

0.75

0.75

1.5

2.2

3

Agitator rotary speed (rpm)

36 rpm

 Working pressure

≤0.09Mpa

Working tempreture

<100℃

Basic parts

Sanitary manhole,
cleaning ball,
safety valve,
pressure gauge


Bacteria Culture Tank
Bacteria Culture Tank 2018-6-5 本文被阅读 1003 次
