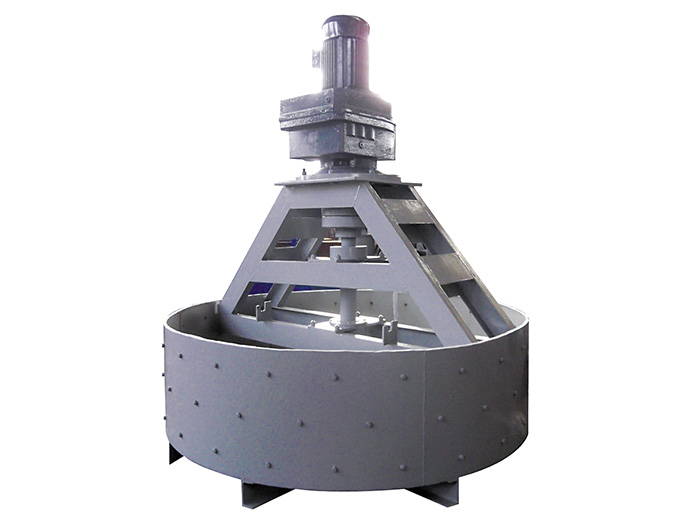

HLJ18-HLJ32 Vertical Mixer

■ USE

◎ It is one of usual machines use in phosphate compound fertilizer industry, used in phosphate compound fertilizer industry for mixing materials.

■ Profile of Equipment

◎ This equipment has the advantages of stable running, even mixing, convenient discharging control, uneasy materials cohesion, wear-resistance, convenient operation and maintenance etc..

■ Main Technical parameters:

Type	HLJ18	HLJ20	HLJ25	HLJ28	HLJ32
Dia of Mixing Pool (mm)	Φ1800	Φ2000	Φ2500	Φ2800	Φ3200
Depth of Mixing Pool (mm)	500	500	500	550	600
Capacity (t/h)	3-5	4-6	6-8	8-10	10-14
Feeding Granularity (mm)	＜50
Power of Reducing Motor (kw)	5.5	7.5	11	15	18.5
Dimensions (L.×W.×H.) (mm)	2000 ×1910 ×2000	2200 ×2140 ×2050	2800 ×2670 ×2300	3050 ×2920 ×2470	3400 ×3310 ×3360

HLJ18-HLJ32 Vertical Mixer
