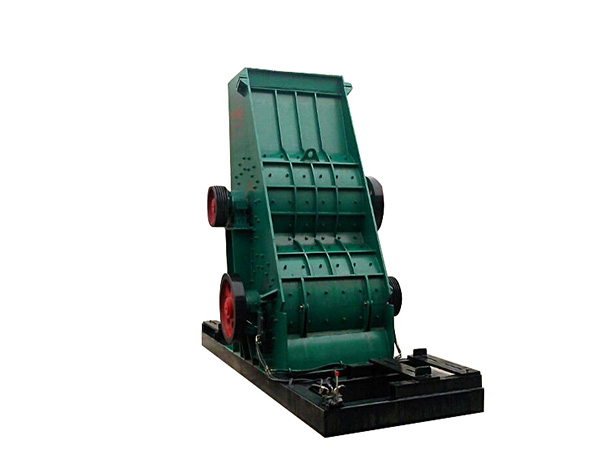

HSGF60 Double stage Pulverizer

HSGF60 Double stage Pulverizer 2018-6-5 本文被阅读 1232 次


■ USE

◎  Used for pulverizing organic materials and fermented materials.

■  Profile of Equipment

◎  This equipment adopts double stage pulverise device, apply to the organic materials with high moisure,Use cutting action of the high speed rotation blades on the two-stages shaft and the friction with lining plate ,to break the materials, this structure ensure the material fully be broken and  has uniform particle size.This euqipment blade and the lining are manganese steel plate, has long service life.


■ Main Technical parameters:

Type

HSGF60

HSGF80

Capacity   (t/h)

4-6

6-8

Feeding Granulatity  (mm)

<20

<20

Discharging Granulatity   (mm)

<0.5占80%以上(over80%)

<0.5占80%以上(over80%)

Feeding moisture  (%)

<40

<40

Power

15KW*2台(sets)

22KW*2台(sets)

Dimension  (L.×W.×H.) (mm)

2075×1840×1746

2450×1920×1950


HSGF60 Double stage Pulverizer
